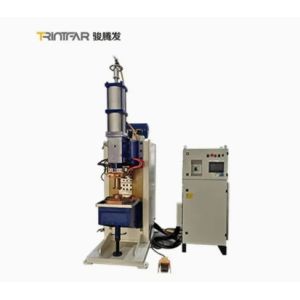

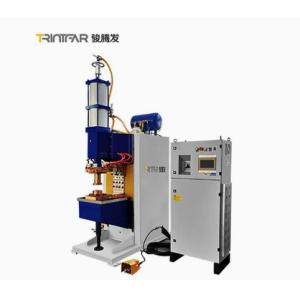

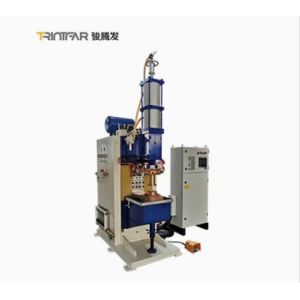

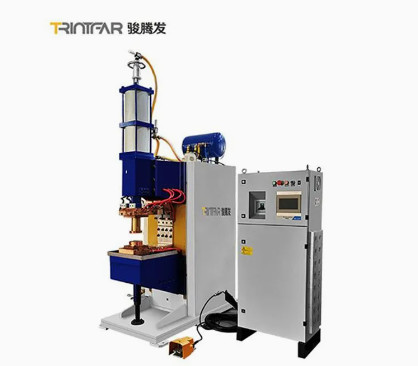

    DC Medium Frequency Resistance Projection Welding Machine

    Ask Lasest Price
    Brand Name : Trintfar
    Certification : CE
    Price : 4000~8000
    Payment Terms : L/C, D/A, D/P, T/T
    Delivery Time : 60~90
    • Product Details
    • Company Profile

    DC Medium Frequency Resistance Projection Welding Machine

    Product Description


    DC Medium Frequency Resistance Projection Welding Machine

    DC Medium Frequency Resistance Projection Welding Machine DC Medium Frequency Resistance Projection Welding Machine
    DC Medium Frequency Resistance Projection Welding MachineDC Medium Frequency Resistance Projection Welding Machine
    Item
    Model
    Maximum Short Current
    KA
    Rated Duty Cycle
    %
    Secondary Voilage
    V
    Rated Power
    KVA
    Electrode
    Pressure
    N
    Electrode
    Stroke
    mm
    Cooling Water
    Lmim
    MD-10T
    10
    50
    ≈9.8
    ≤20
    1200
    50
    20
    MD-20
    20
    50
    ≈9.8
    ≤50
    4700
    80
    24
    MD-25
    25
    50
    ≈9.8
    ≤70
    4700
    80
    24
    MD-40
    40
    50
    ≈11.6
    ≤120
    7300
    80
    30
    MD-60
    60
    50
    ≈11.6
    ≤160
    12000/18000
    100
    50
    MD-80
    80
    50
    ≈11.6
    ≤240
    12000/18000
    100
    50
    MD-120
    120
    50
    ≈11.6
    ≤300
    18000
    100
    60

    Features:
    The power supply unit's duty are balanced. Three phase power make MD frequency inverter more adaptable in winding and pressure
    of wire.
    More preaser, faster current control, can analyse parameters more and faster compare with power frequency system.
    Faster to set up current, the speed is 20folds quicker than traditional technic
    Process more reliable: the majority of the application of solder DC welding metal effect will be even better.
    Reduce operating costs, including energy savings each and every point of welding as well as shortening the welding cycle.
    Save energy :especially suitable for welding thick workpieces and high-conductivity metal .such as aluminum and galvanized
    steel sheet.etc.
    DC Medium Frequency Resistance Projection Welding MachineDC Medium Frequency Resistance Projection Welding MachineDC Medium Frequency Resistance Projection Welding MachineDC Medium Frequency Resistance Projection Welding MachineDC Medium Frequency Resistance Projection Welding Machine
    DC Medium Frequency Resistance Projection Welding Machine Q Are you a trading company or a factory?
    A We are an integrated industry and trade, and have our own factory.

    Q Where is your factory located?
    A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

    Q Can you customize the machine?
    A We support OEM/ODM service and can customize the machine according to your requirements.

    Q What is the MOQ?
    A According to the customer's requirements.

    Q What are your services during the purchase process?
    A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
    On-sales: Technical training, Installation and commissioning services.
    After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.


    Q How long is your warranty period?
    A We offer a one-year warranty.

    Q What is the payment terms?
    A We ship with full payment, and we can negotiate payment terms.

    Q How long is the delivery time?
    A Delivery time for standard machines: 7-15 working days
    Delivery time for customized machines: According to the degree of customization, about 1-3 months

    Q Can you provide samples?
    A We provide sampling service, but you need to send us the sample by courier.
