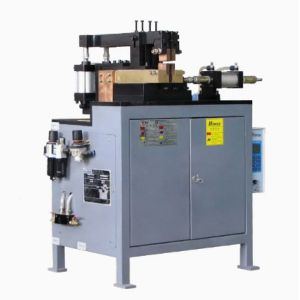

Customization Butt Welder For Steel Wire 220V-230V

Shanghai Trintfar Intelligent Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Customization Butt Welder For Steel Wire 220V-230V from wholesalers

    Buy cheap Customization Butt Welder For Steel Wire 220V-230V from wholesalers
    • Buy cheap Customization Butt Welder For Steel Wire 220V-230V from wholesalers
    • Buy cheap Customization Butt Welder For Steel Wire 220V-230V from wholesalers
    • Buy cheap Customization Butt Welder For Steel Wire 220V-230V from wholesalers
    • Buy cheap Customization Butt Welder For Steel Wire 220V-230V from wholesalers

    Customization Butt Welder For Steel Wire 220V-230V

    Ask Lasest Price
    Brand Name : Trintfar
    Certification : CE
    Price : 4000~8000
    Payment Terms : L/C, D/A, D/P, T/T
    Delivery Time : 45~60
    • Product Details
    • Company Profile

    Customization Butt Welder For Steel Wire 220V-230V

    Product Description


    Butt Welder for Steel Wire
    Product Description
    The parts to be butt welded are pneumatically and hydraulically controlled to provide an even flash contact at the contact edges. initiaIly the power is turned on and progressively increased to remove oxidants and residues. The end surfaces of the parts to be welded are heated to plastic stage through a regulated power supply. Upset forging force is then applied to make the end surfaces to get flushed and welded. The machine is designed to provide the high welding strength to the welded component. There is no false joint, residue and air bubble in the point of welding.The machine is widely used in the butt welding of handles of kitchen utensils such as knife, fork, spoon and spatula, as well as the welding of hardware products such as round pipes, square pipes, round steel, flat iron, bicycle wheel rims, motor wheel rims, etc.
    Butt Welder for Steel Wire Butt Welder for Steel Wire
    Features:
    • By integration of electromechanical, hydraulic and pneumatic design, the warming up, flashing and upset forging process are optimized to have best result.
    • Controlled by microprocessor, has various series specification storage, valid for different working parts welding.
    Item
    Model
    UN-25UN-35UN-50UN-75UN-100UN-150UN-200
    Rated capacity
    KVA

    25

    35

    50

    75

    100

    150

    200
    Rated Primary voltage
    V

    380

    380

    380

    380

    380

    380

    380
    Rated frequency
    Hz

    50/60

    50/60

    50/60

    50/60

    50/60

    50/60

    50/60
    Maximum short current
    A

    11000

    13000

    15000

    22000

    28000

    32000

    35000
    Maximum clamping rate
    N

    3900

    3900

    3900

    6100

    6100

    8000

    8000
    Maximum forging force
    N

    1500

    1500

    1500

    2500

    2500

    3000

    3000
    Rated duty cycle
    %

    50

    50

    50

    50

    50

    50

    50
    Dimensions
    mm
    900*800*1200900*800*1200900*800*1200900*800*1200900*800*12001350*800*16001350*800*1600
    Butt Welder for Steel WireButt Welder for Steel WireButt Welder for Steel WireButt Welder for Steel WireButt Welder for Steel WireButt Welder for Steel WireButt Welder for Steel WireQ Are you a trading company or a factory?
    A We are an integrated industry and trade, and have our own factory.

    Q Where is your factory located?
    A Our factory is located in Songjiang district, Shanghai of China. In addition, we also have factories in Dongguan and Ningbo.

    Q Can you customize the machine?
    A We support OEM/ODM service and can customize the machine according to your requirements.

    Q What is the MOQ?
    A According to the customer's requirements.

    Q What are your services during the purchase process?
    A Pre-sales: Visit the factory, Technical solutions and program design services, Proofing services, Sample testing services.
    On-sales: Technical training, Installation and commissioning services.
    After-sales: Free non-wearable parts, Repair service, Video technical support, Online remote guidance.


    Q How long is your warranty period?
    A We offer a one-year warranty.

    Q What is the payment terms?
    A We ship with full payment, and we can negotiate payment terms.

    Q How long is the delivery time?
    A Delivery time for standard machines: 7-15 working days
    Delivery time for customized machines: According to the degree of customization, about 1-3 months

    Q Can you provide samples?
    A We provide sampling service, but you need to send us the sample by courier.
