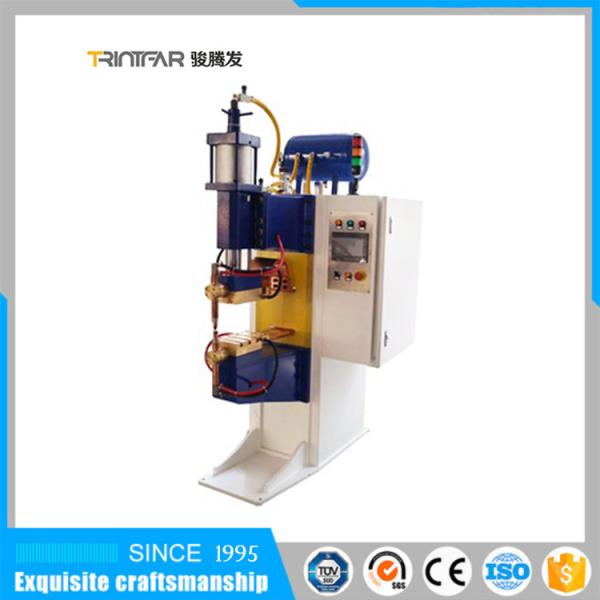

    Buy cheap Medium Frequency Spot Welding Machines Aluminum Plate Welding Machine from wholesalers

    Buy cheap Medium Frequency Spot Welding Machines Aluminum Plate Welding Machine from wholesalers
    • Buy cheap Medium Frequency Spot Welding Machines Aluminum Plate Welding Machine from wholesalers

    Medium Frequency Spot Welding Machines Aluminum Plate Welding Machine

    Ask Lasest Price
    Brand Name : TRINTFAR
    Model Number : MD-20
    Certification : CE
    Price : USD 1000-3000 Set
    Payment Terms : L/C, D/A, D/P, D/P, T/T
    Supply Ability : 500 Per year
    Delivery Time : Within 90 days of the final payment
    • Product Details
    • Company Profile

    Medium Frequency Spot Welding Machines Aluminum Plate Welding Machine

    Aluminum Plate Welding Machine Medium Frequency Spot Welder

    DESCRIPTION

    Medium Frequency Direct Current machines use an inverter, powered from a 3 phase supply in which the current is rectified using diodes and then chopped by means of IGBT’s into high frequency alternating current. This alternating current is then transformed by the welding transformer and again rectified. DC current is thus obtained at the secondary side in to the parts to be welded.

    The MFDC welding machine load is evenly distributed across all three phases. This allow equal load to be drawn from each line, thus reducing peak draw on any one line. The price of MFDC machines is higher than the conventional Alternating current (AC) machines but users will get advantages such as three phase balanced loading, weight reduction in transformer, about 20 to 25% less power requirement as compared to AC machines, better control over time and uninterrupted energy input into the parts to be welded.

    FEATURE

    1. Advanced welding machine, adopt principle of MF inverter . Change the three phase AC power into DC power.
    2. Welding current is DC , no inductance , higher heat input and output efficiency , more reliable and stable welding quality
    3. Three phase load balance, power factor is close to 1
    4. Intelligent digital controller, more precise and faster control of the welding current. The adjustment precision is 20 times higher than the AC machine
    5. Reduce the production cost, save energy, reduce the requirement for cables and maintenance cost, improve the induction factor.
    6. Store energy in a special inverter, more adaptation to the fluctuation of the power grid.
    7. Smaller size and lower weight of welding transformer, one third of the AC machine .
    8. Be able to weld aluminum and galvanized material product
    9. Especially suitable for welding three-layer metal sheet or very thin product
    Specification
    Item
    Model
    Maximum Short Current
    KA
    Rated Duty Cycle
    %
    Secondary Voilage
    V
    Rated Power
    KVA
    Electrode
    Pressure
    N
    Electrode
    Stroke
    mm
    Cooling Water
    Lmim
    MD-10T
    10
    50
    ≈9.8
    ≤20
    1200
    50
    20
    MD-20
    20
    50
    ≈9.8
    ≤50
    4700
    80
    24
    MD-25
    25
    50
    ≈9.8
    ≤70
    4700
    80
    24
    MD-40
    40
    50
    ≈11.6
    ≤120
    7300
    80
    30
    MD-60
    60
    50
    ≈11.6
    ≤160
    12000/18000
    100
    50
    MD-80
    80
    50
    ≈11.6
    ≤240
    12000/18000
    100
    50
    MD-120
    120
    50
    ≈11.6
    ≤300
    18000
    100
    60
