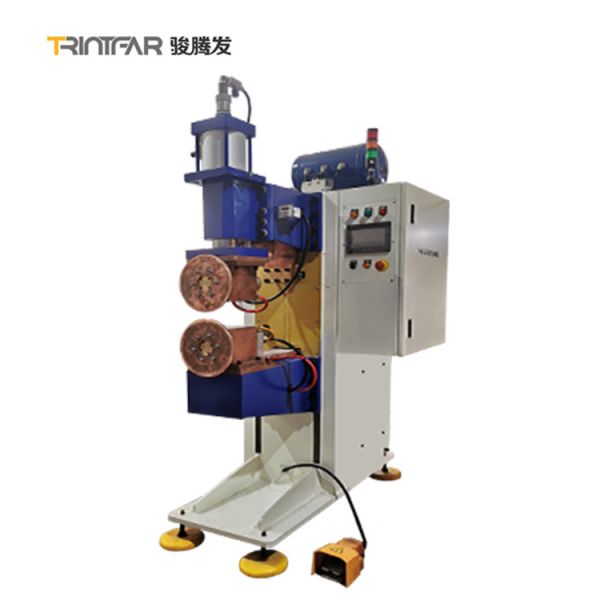

    Automatic Industrial Seam Welding Machine High Frequency Welding Machine

    Ask Lasest Price
    Brand Name : TRINTFAR
    Model Number : FM-25
    Certification : CE,ISO,CE/CCC
    Price : USD 3000-5000 set
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 500 Per year
    Delivery Time : Within 90 days of the final payment
    • Product Details
    • Company Profile

    Automatic Industrial Seam Welding Machine High Frequency Welding Machine

    High Frequency Welding Machine Automatic Industrial Seam Welding Machine

    This longitudinal seam welders provide a solution to these problems. They optimize the welding process, reduce welding costs and improve the quality of the weld. They are designed for the straight line welding of all weldable materials in thicknesses varying from 0.1 mm to 10 mm. Thicker materials can be accommodated using Metform 's unique mandrel adjustment capability.

    Adopt key pressure structure. Equal stable clamping and cooling effect. Crossbeam and welding cart supply precise welding. Used for high quality and low deformation longitudinal beam welding. In most cases, butt joint design welding seam.

    Used to weld can, tube, air duct and tank from metal sheet.

    Specification

    Item
    Model
    Maximum Short Current
    KA
    Rated Duty Cycle
    %
    Secondary Voilage
    V
    Rated Power
    KVA
    Electrode
    Pressure
    N
    Electrode
    Stroke
    mm
    Cooling Water
    Lmim
    FM-20
    20
    50
    ≈9.8
    ≤50
    4700
    80
    24
    FM-25
    25
    50
    ≈9.8
    ≤70
    4700
    80
    24
    FM-40
    40
    50
    ≈11.6
    ≤120
    7300
    80
    30
    FM-60
    60
    50
    ≈11.6
    ≤160
    12000/18000
    100
    50
    FM-80
    80
    50
    ≈11.6
    ≤240
    12000/18000
    100
    50
    FM-120
    120
    50
    ≈11.6
    ≤300
    18000
    100
    60
