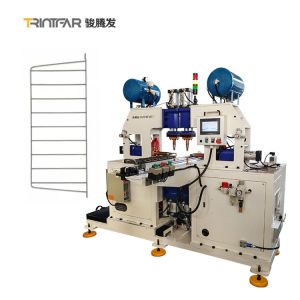

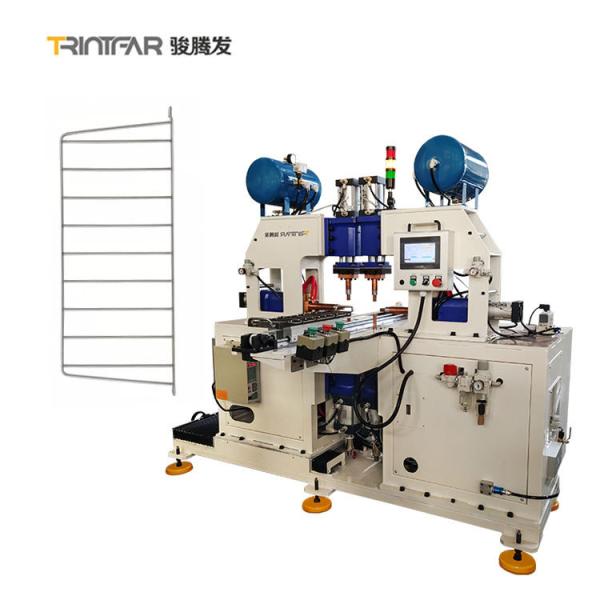

    60KVA CE Automatic Steel Wire Mesh Welding Machine

    Ask Lasest Price
    Brand Name : TRINTFAR
    Model Number : MD-50
    Certification : CE
    Price : USD 1000-3000 Set
    Payment Terms : L/C, D/A, D/P, D/P, T/T
    Supply Ability : 500 Per year
    Delivery Time : Within 90 days of the final payment
    • Product Details
    • Company Profile

    60KVA CE Automatic Steel Wire Mesh Welding Machine

    High Quality Automatic Steel Wire Mesh Welding Machine with Best Price

    Pneumatic welding machine:

    1. It adop the japan smc air cylinder ,speed fast ,improve 50% effeiciency

    2. Work stable and welding the mesh firm

    3. New techonlogy with power consumption

    4. All electric appliciance are import famous brand

    The welding host is a device that pressurizes the positioned vertical and horizontal lines and energizes them to form solder joints.The precision casting threading groove is used to connect with the electrode to ensure the accuracy of the mesh.The threading groove has an elastic lifting function, which effectively reduces the wear of the electrode block and extends the electrode insertion.

    Provide horizontal line detection device to ensure the correct position of horizontal line drop.

    The single resistance welding transformer has a power of 150KVA and is equipped with a cooling water circulation and temperature control detection switch to prevent the transformer from burning out.

    Specification
    Item
    Model
    Maximum Short Current
    KA
    Rated Duty Cycle
    %
    Secondary Voilage
    V
    Rated Power
    KVA
    Electrode
    Pressure
    N
    Electrode
    Stroke
    mm
    Cooling Water
    Lmim
    MD-10T
    10
    50
    ≈9.8
    ≤20
    1200
    50
    20
    MD-20
    20
    50
    ≈9.8
    ≤50
    4700
    80
    24
    MD-25
    25
    50
    ≈9.8
    ≤70
    4700
    80
    24
    MD-40
    40
    50
    ≈11.6
    ≤120
    7300
    80
    30
    MD-60
    60
    50
    ≈11.6
    ≤160
    12000/18000
    100
    50
    MD-80
    80
    50
    ≈11.6
    ≤240
    12000/18000
    100
    50
    MD-120
    120
    50
    ≈11.6
    ≤300
    18000
    100
    60
